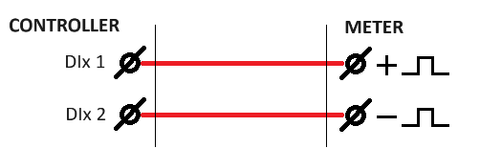

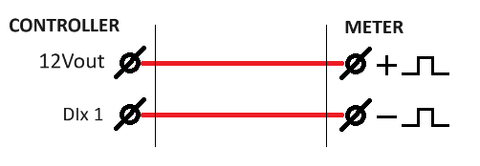

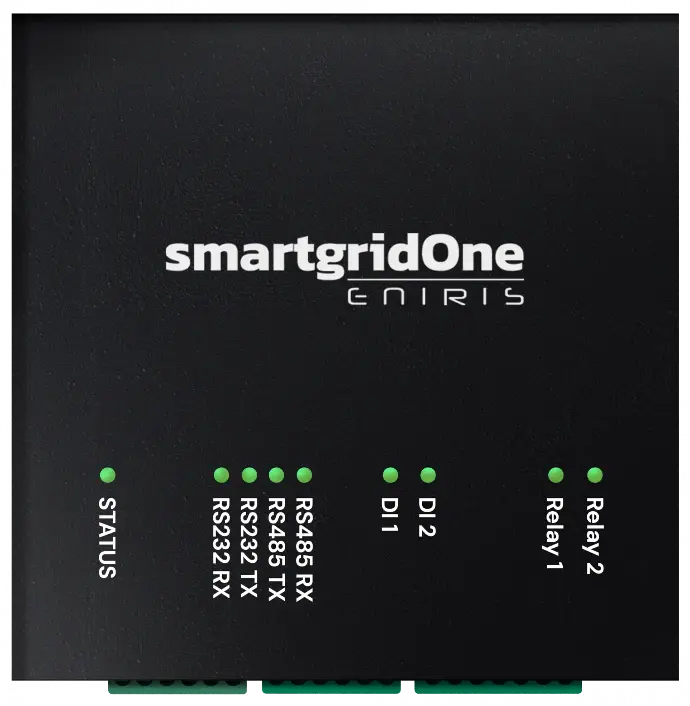

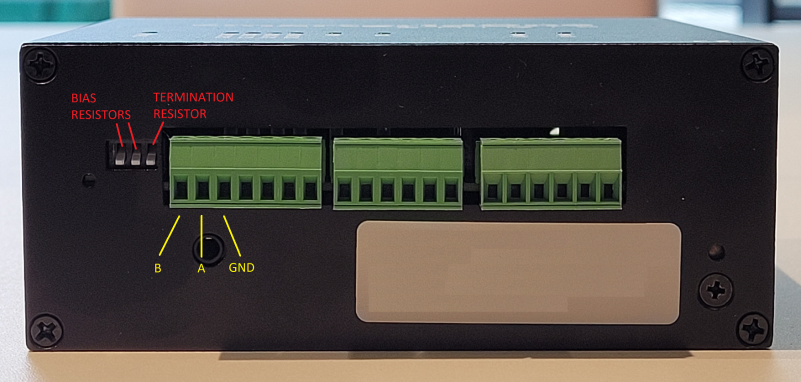

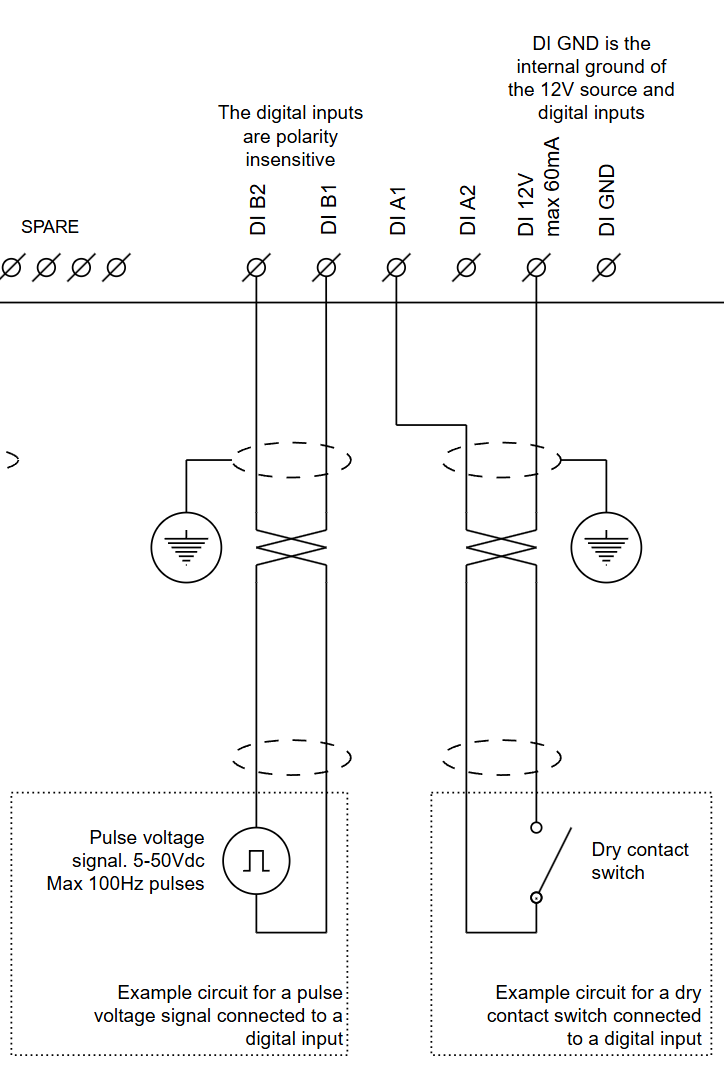

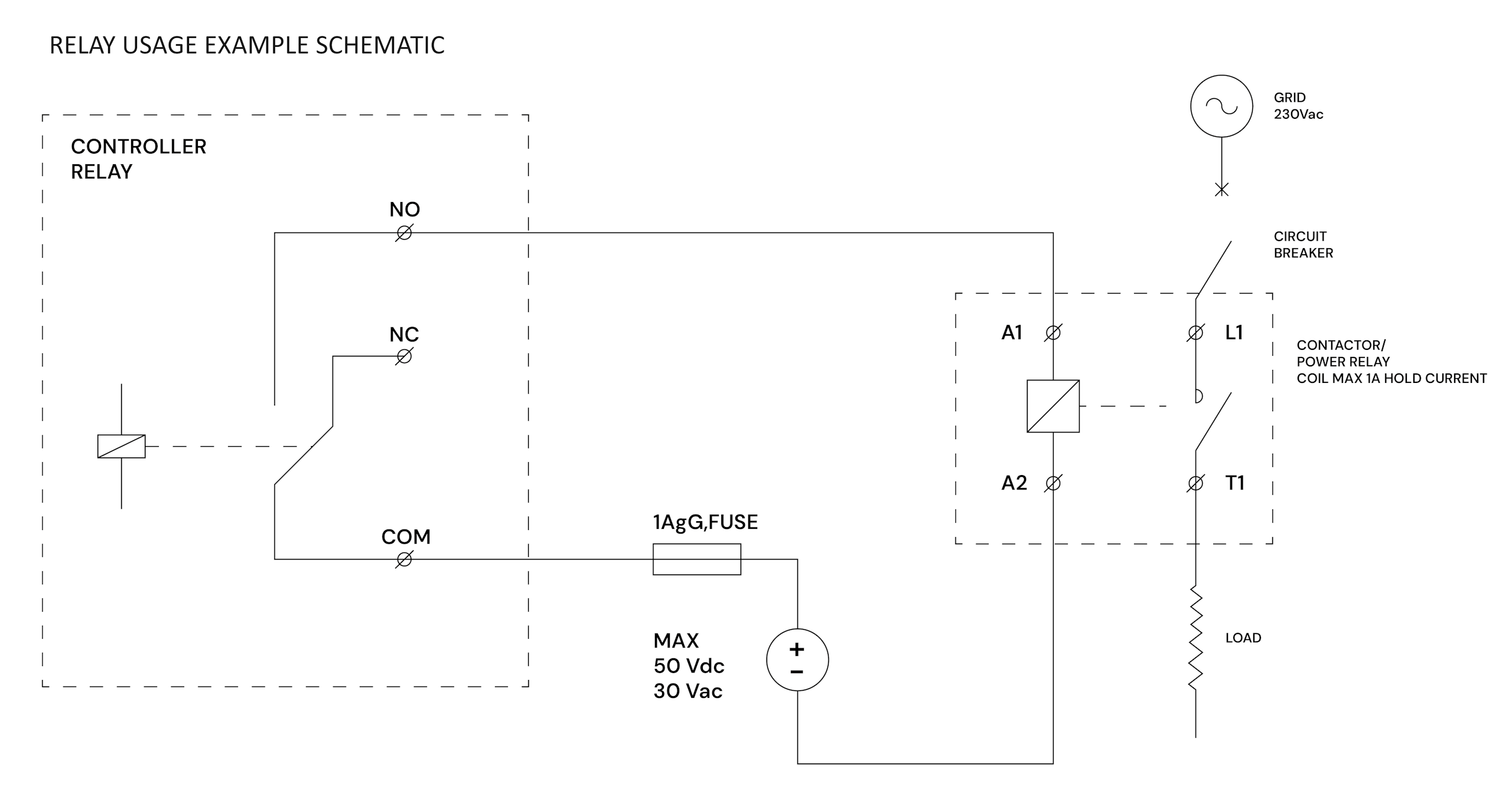

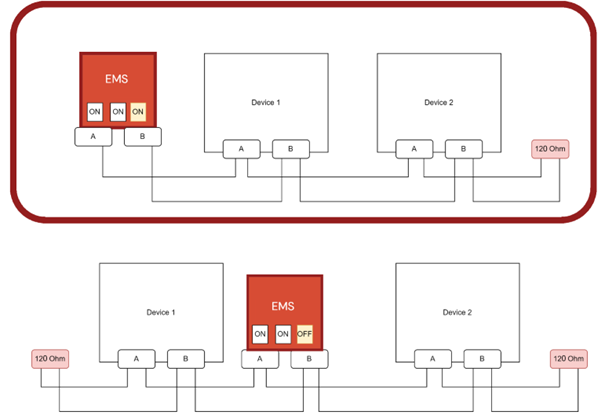

Wiring & connectivity guidelines
Note
Note
The insulation class of the cables must be suitable for the intended signal voltage. Ensure that the cables used comply with the appropriate safety and operational standards for the specific voltage levels in the system.
Ethernet
The following guidelines apply:
- Cable type: You must use CAT5e or higher cables for optimal performance. In commercial and industrial settings, it is recommended to use shielded cables.
- Network connection: Check with your computer if you have internet on the ethernet cable before connecting it to the MidTeQ PULSE EMS or device.
- Maximum distance: The individual cable length is limited to 100 meters. For longer distances you need a signal booster or switch.
- Subnet: The MidTeQ PULSE EMS and the devices have to be on the same subnet to be able to communicate (e.g. a MidTeQ PULSE EMS in subnet 192.168.1.x can generally not talk with a device in subnet 192.168.200.x).
- Outbound ports: See on firewall configurations.
