Configuration from A to Z

Accessing the commissioning interface

Note
Note

Make sure the MidTeQ PULSE EMS is switched on and connected to the network.

Tip
Tip

Troubleshooting

If you have have trouble accessing the commissioning interface, see also "Troubleshooting: Access to the commissioning interface".

Option 1: Access through the app or portal

Tip
Tip

Make sure you have linked the MidTeQ PULSE EMS to your account before proceeding.

  1. Log in to the app (smartphone) or Portal (computer).

  2. Set the view to 'MidTeQ PULSE'

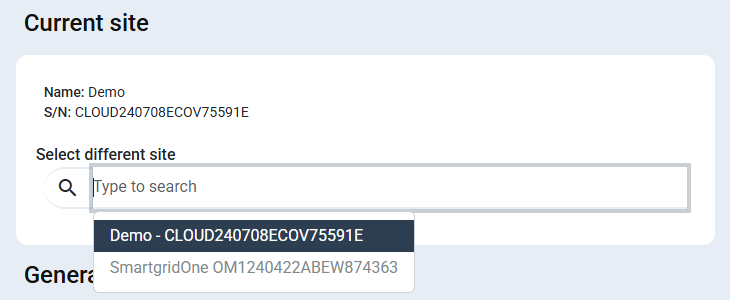

  3. In the settings menu, switch to the MidTeQ PULSE EMS that you want to access.

Image 1
Image 1
  1. Access the commissioning interface by clicking "Controller configuration".
Tip
Tip

If it says that the MidTeQ PULSE EMS is offline, check out the wiring & connectivity guidelines and the network firewall guidelines

Option 2: Access locally through mDNS

Warning
Warning

Software version

This option is valid from software version 1.18.x.y onwards.

Note
Note

Operating system

The MidTeQ PULSE broadcasts its IP address through mDNS. This protocol is supported on Windows 11 and newer builds of Windows 10. Older Windows versions do not support mDNS.

  1. Connect your computer through ethernet to the same network as the MidTeQ PULSE EMS.
  2. Make sure you have DHCP configured for the ethernet interface of your computer. (NOT a fixed IP address! See also give your computer a fixed IP address)
  3. Switch off WiFi on your computer (and 4G if you have that), and restart your computer so all network connections are cleared. After restarting, make sure all VPN connections are disabled.
  4. Open a browser, surf to http://[SERIAL_NUMBER].local, where [SERIAL_NUMBER] is to be replaced by the serial number of your controller. For example, http://OM1241105ZEXO12B10A.local
  5. It can take a minute for your computer to find the MidTeQ PULSE EMS.
  6. If no connection can be made, you need to find the local IP address of the MidTeQ PULSE EMS. See option 3.
Tip
Tip

Initial configuration for a network without DHCP

If you need to initially configure the controller in a network without DHCP, you can directly connect the controller to your computer (without a router) - and access it through mDNS.

Option 3: Access locally through the MidTeQ PULSE EMS's IP address.

Option 3.1: Find the IP address with an IP scanner (works if the MidTeQ PULSE has a good network configuration)

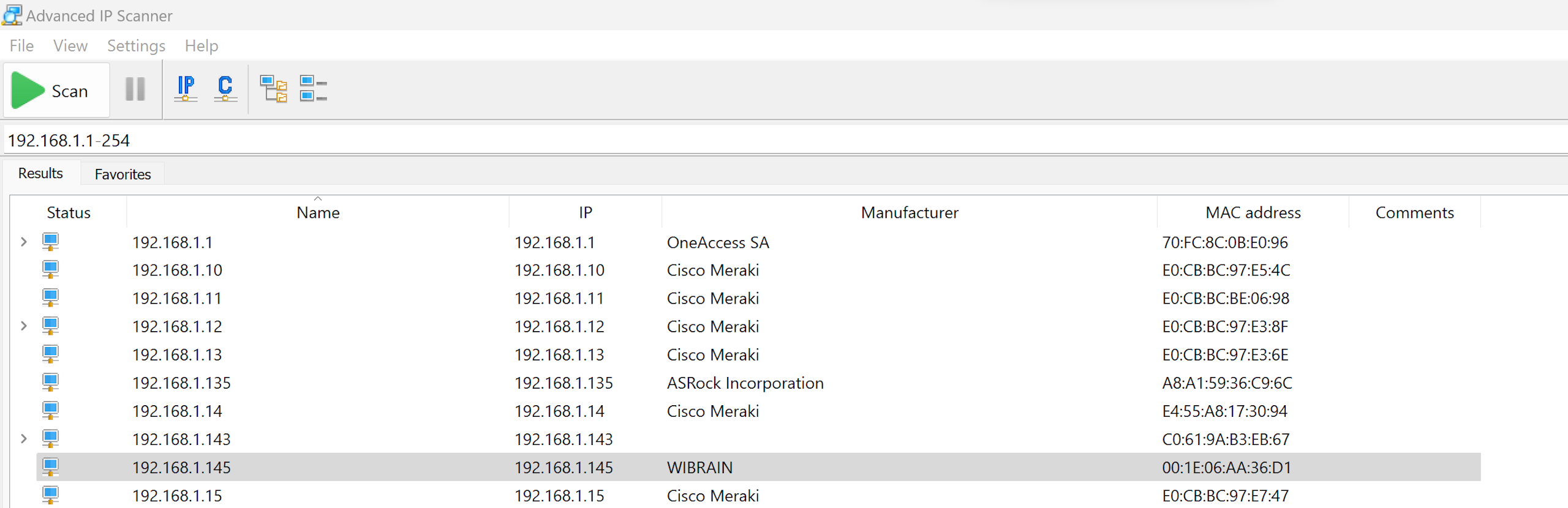

  1. Download an IP scanner such as "Fing" (Google Play Store or iOS App Store) or "Advanced IP Scanner" (Windows).

  2. Connect your smartphone or computer to the same network as the MidTeQ PULSE EMS.

  3. Scan for devices on the network and find the IP address of the device with the MAC address listed on the MidTeQ PULSE EMS's label.

Image 1
Image 1
Image 1
  1. In a webbrowser, surf to the IP address.

Option 3.2: Find the IP address with mDNS (also works if the MidTeQ PULSE does NOT have a good network configuration)

Warning
Warning

Software version

The procedure below is valid from software version 1.18.x.y onwards.

Note
Note

Operating system

The MidTeQ PULSE broadcasts its IP address through mDNS. This protocol is supported on Windows 11 and newer builds of Windows 10. Older Windows versions do not support mDNS.

  1. Connect your computer through ethernet to the same network as the MidTeQ PULSE. Switch off WiFi on your computer (and 4G if you have that), and restart your computer so all network connections are cleared. After restarting, make sure all VPN connections are disabled.

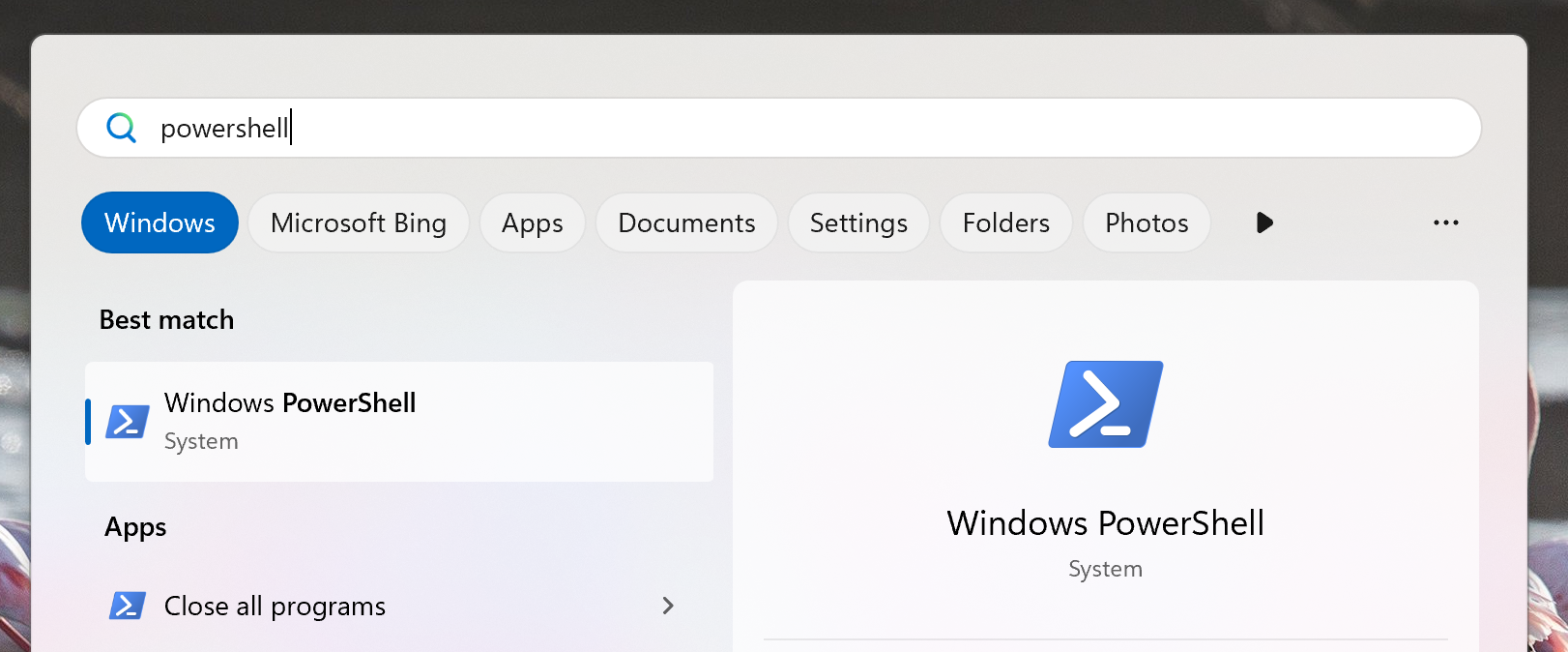

  2. Open the Windows start menu, type "powershell" and open "Windows PowerShell".
Powershell start

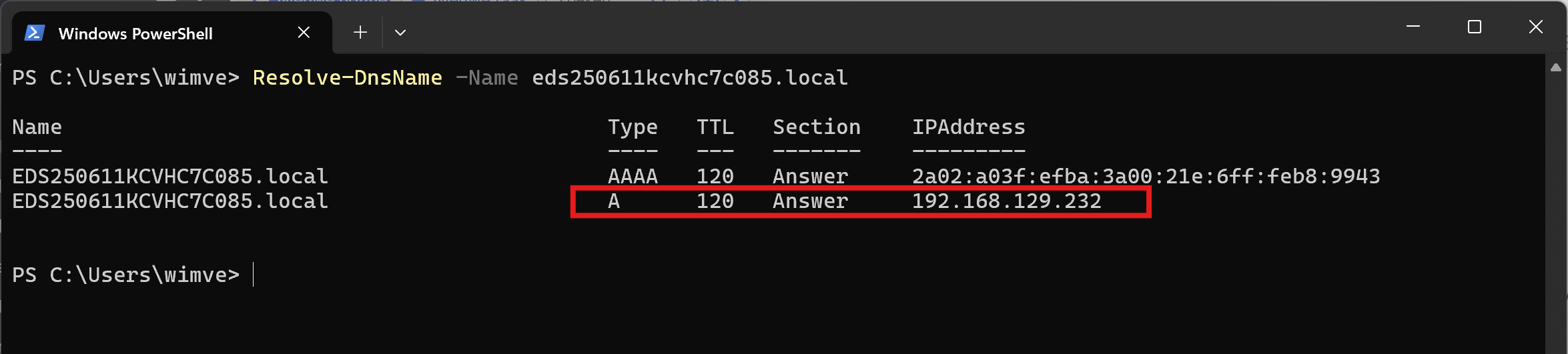

  1. In PowerShell, type: "Resolve-DnsName -Name [SERIAL_NUMBER].local", where [SERIAL_NUMBER] is to be replaced by the serial number of your controller. For example, "Resolve-DnsName -Name OM1241105ZEXO12B10A.local"
  2. After a minute, the IP addresses of the controller should appear.
Powershell mDNS
  1. Only the address of the type "A" (an IPv4 address) can be used to access to the commissioning interface, due to general restrictions in web browsers.
  2. If your computer is in the same subnet as the MidTeQ PULSE, then you should be able to access the commissioning interface by surfing to the IP address in a web browser.
  3. Else, first give your computer a fixed IP address in the same subnet as the MidTeQ PULSE before accessing the commissioning interface.
