Tip
Tip

For the MidTeQ PULSE EMS energy meters are installed 'in reverse' when they count export / production / discharging as a positive number, and import / consumption / charging as a negative number.

Warning
Warning

For stable functioning of the control system, it is important that the MidTeQ PULSE EMS knows when an energy meter is installed in reverse.

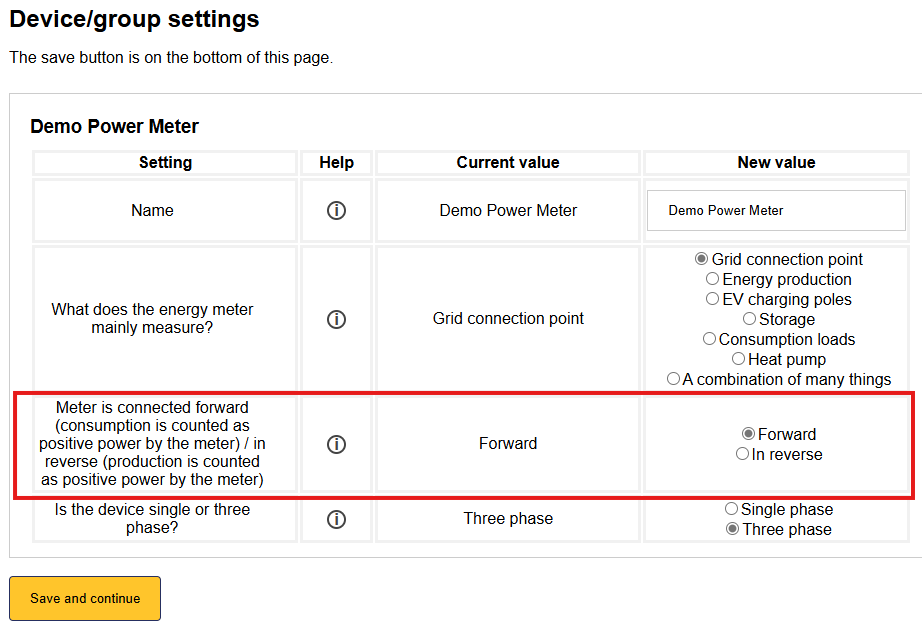

You can indicate in the settings of the energy meter in the 'Devices tab' that an energy meter is installed in reverse.

Image 1
Image 1
